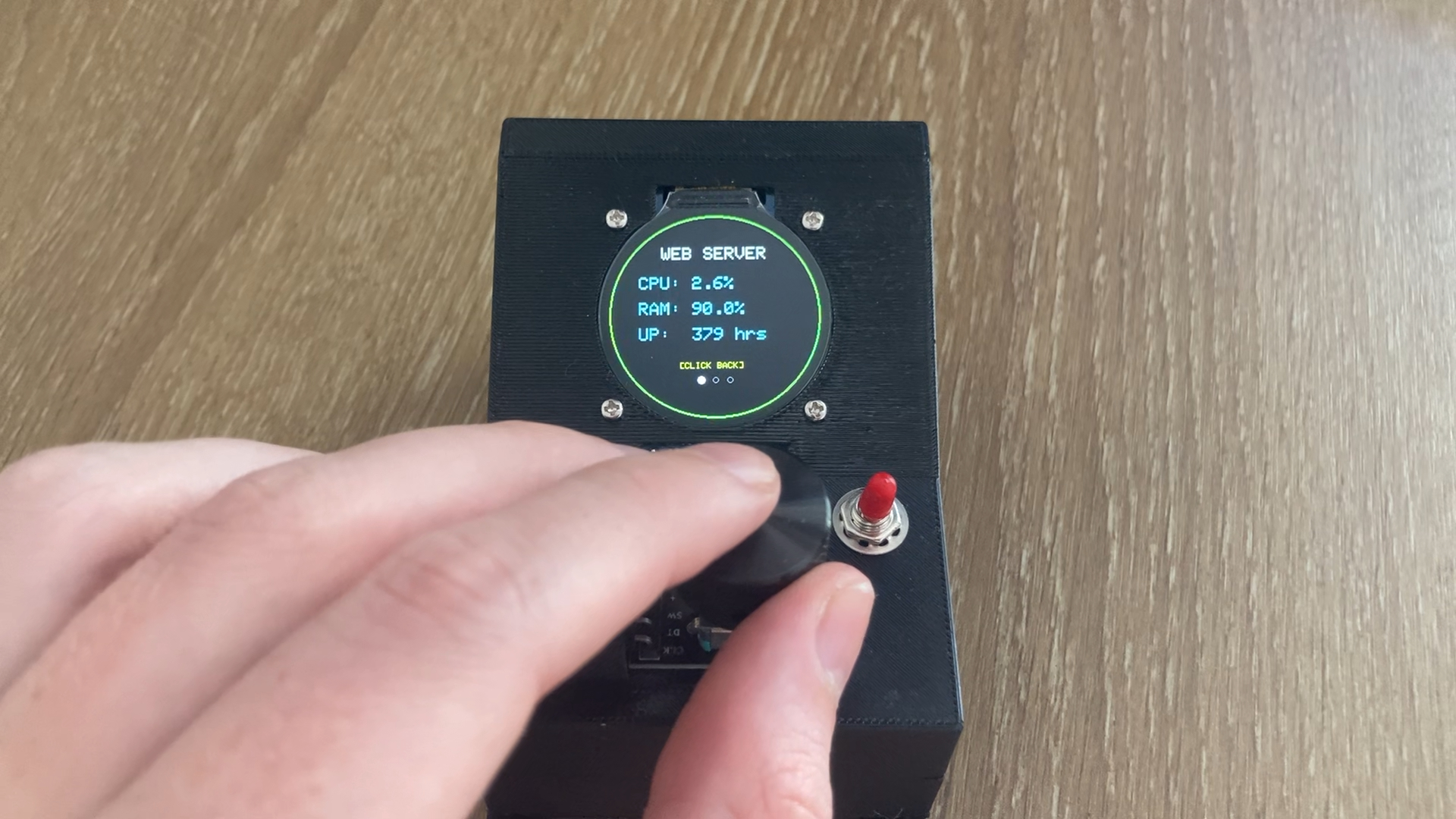

Server Monitor

A standalone device meant to sit on your desk. The monitor connects to your local router and reads your local server status, uptime, wifi, database latency, and more. Alerting you if anything goes down.

Project Type Server Monitoring
CAD Autodesk Fusion
Microcontroller ESP32-S3-DevkitC-1
Display ESP32-TFT Display
Server Interface Flask API Endpoint
Author Rowan Lumb
Status Complete

Download Assembly STL

Project Video

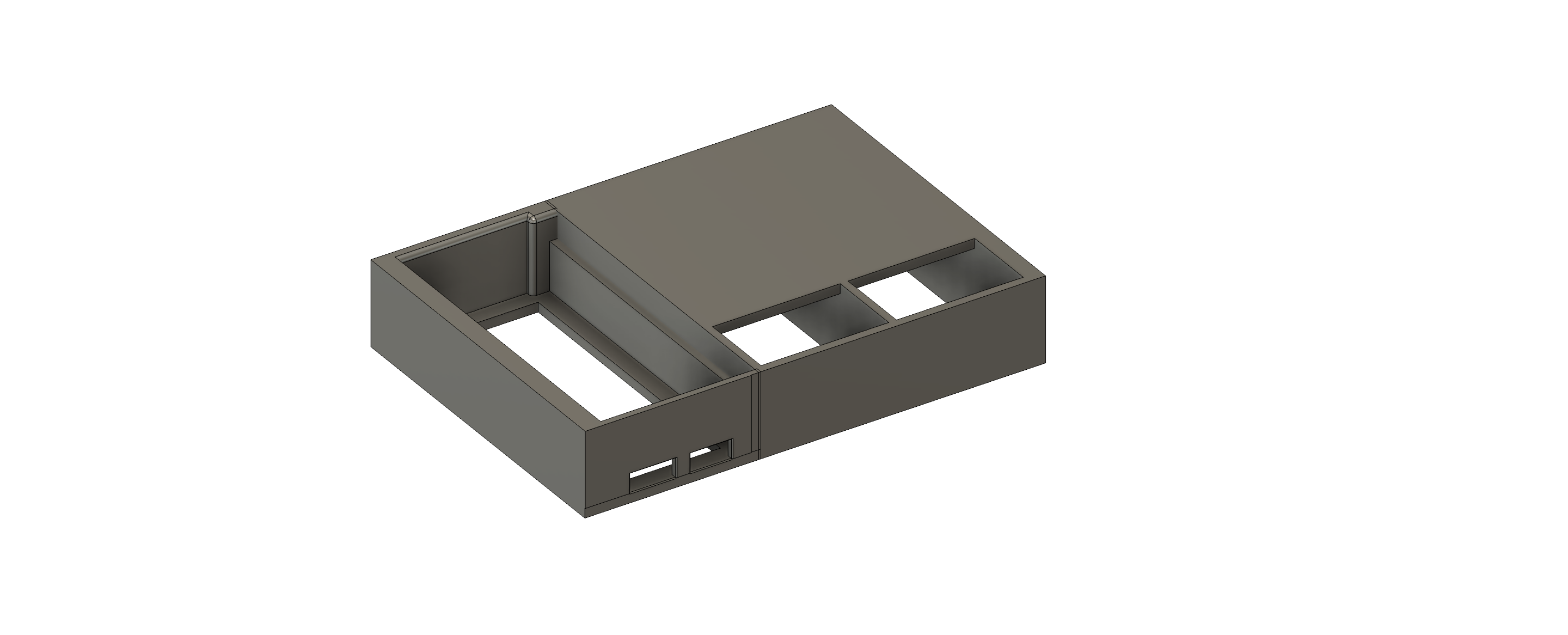

Assembly

Rotate, zoom, and inspect the complete assembly directly in your browser.

Bill of Materials

Item	Cost	Qty

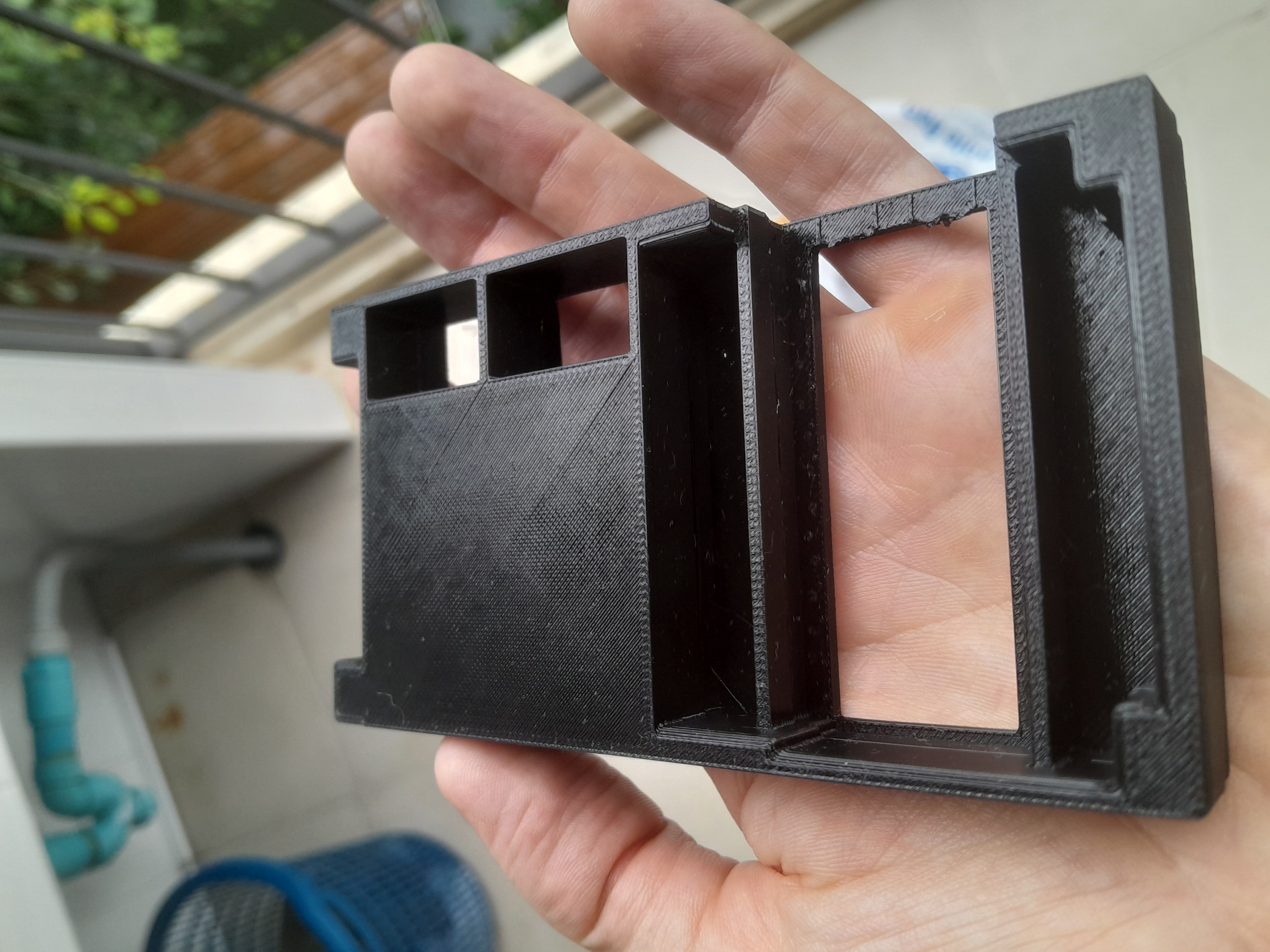

3D Printed Enclosure (3D Printed ~5 hours)	~$1-$10	1
ESP32-S3-DevkitC-1	~$10	1
Switch	~$.50	1

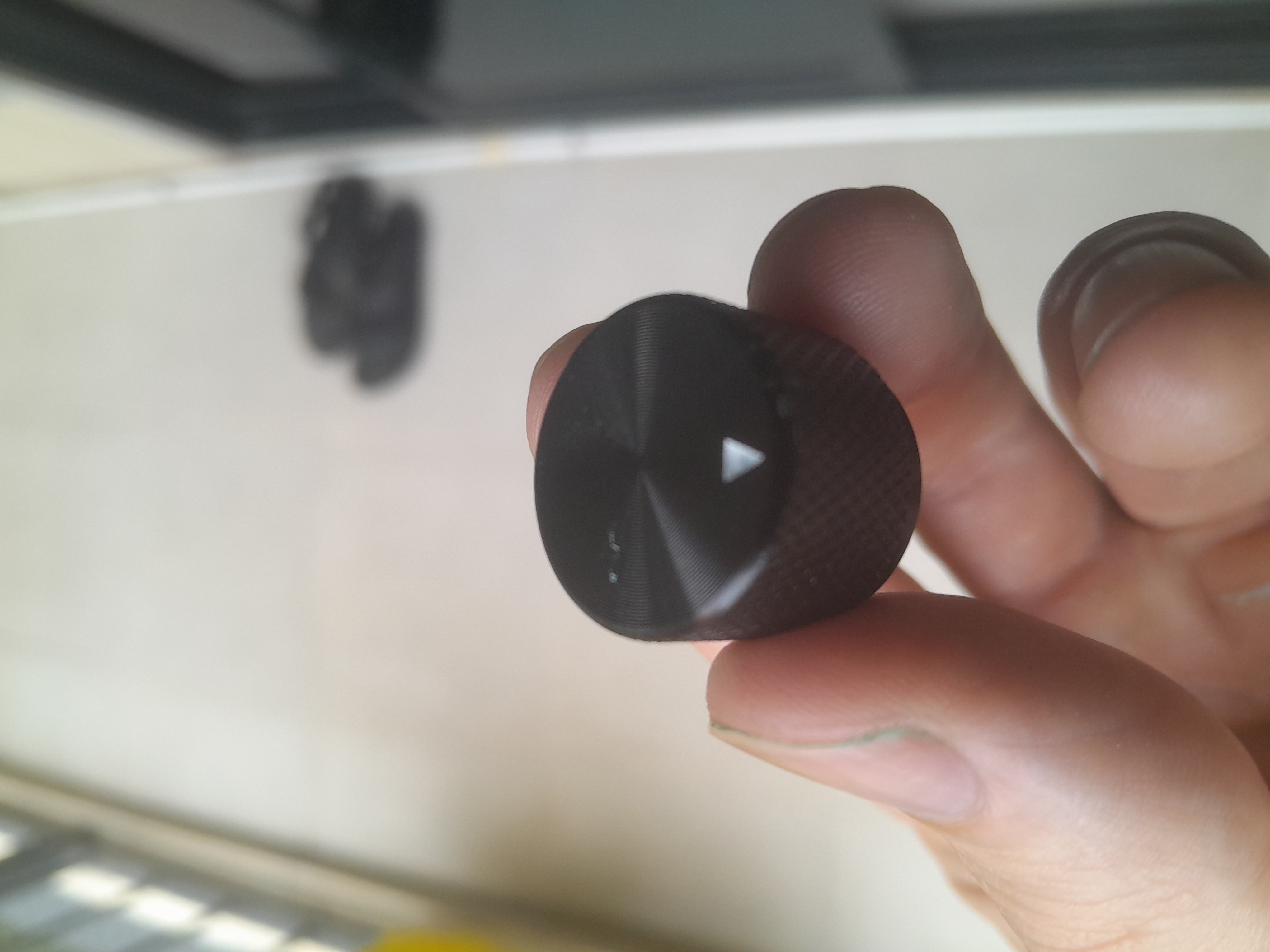

Rotary Encoder Module KY-040 (Knob)	~$1.50	1
ESP32-TFT Display	~$8	1
Dupont Wires & Wires	~$3	1

*Costs are approximate and based on 2026 retail pricing in Thailand. Printing estimates assume either self-printing (material cost) or commercial print services.

Show Full Bill of Materials

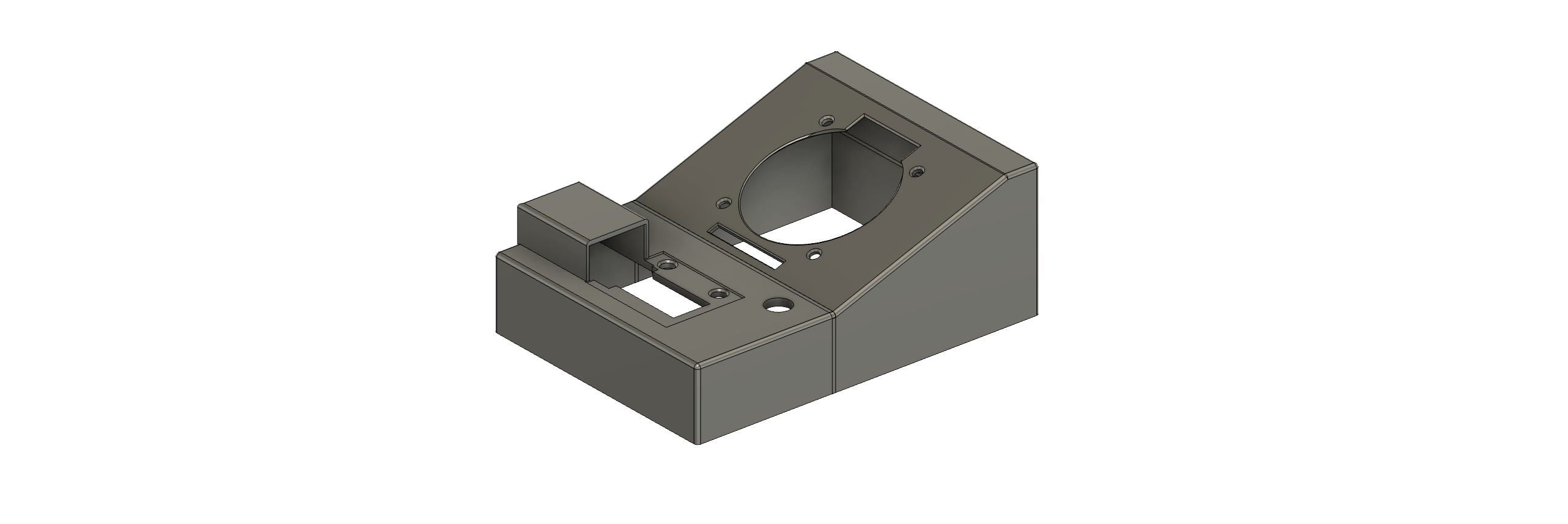

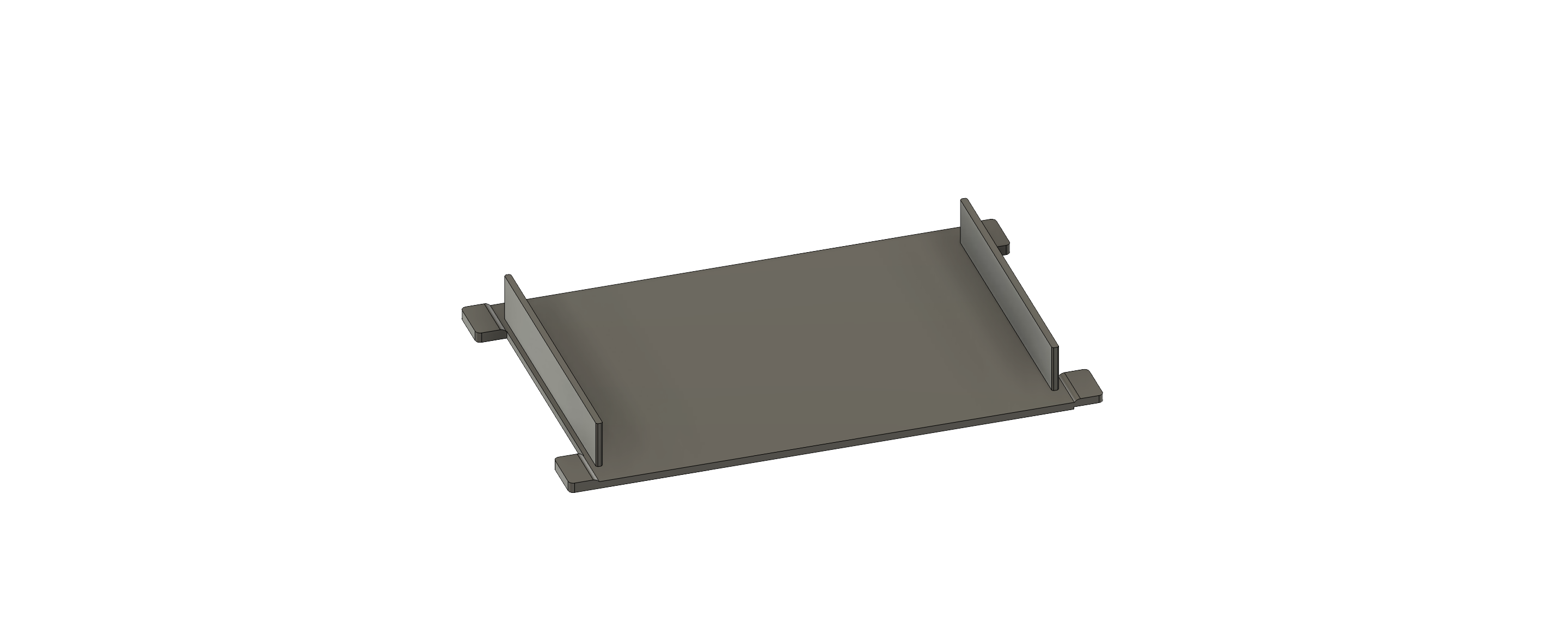

Individual Components

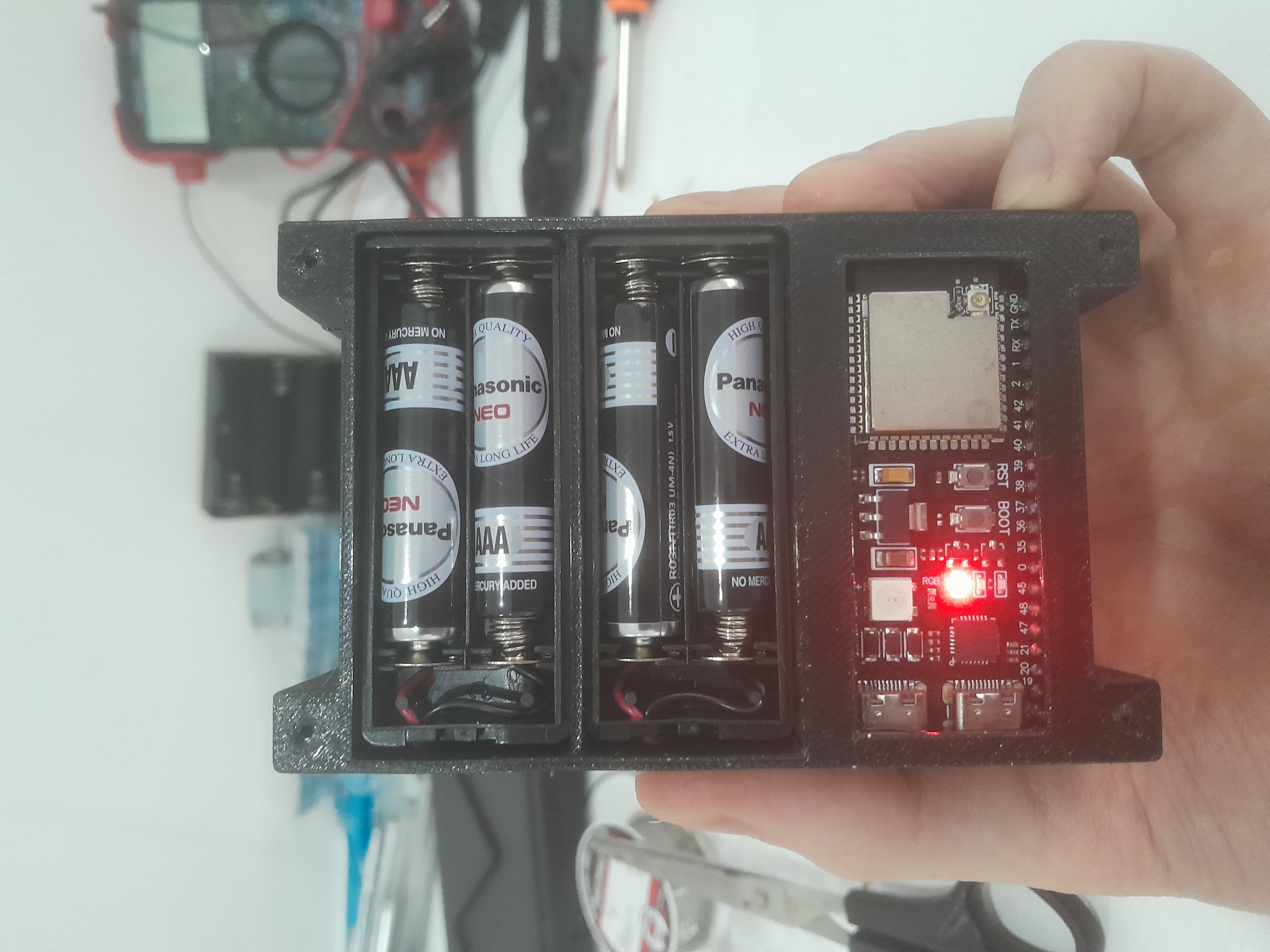

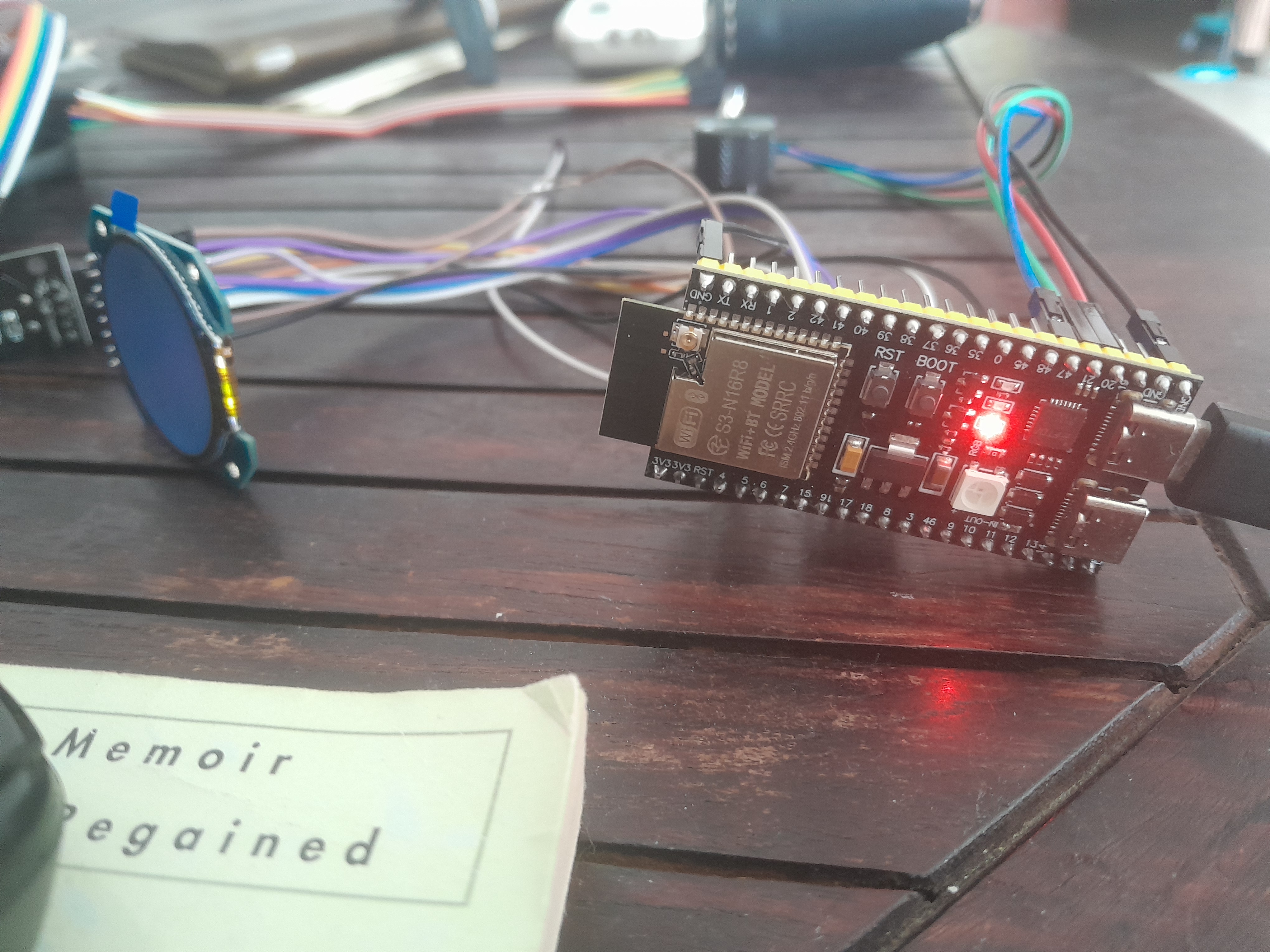

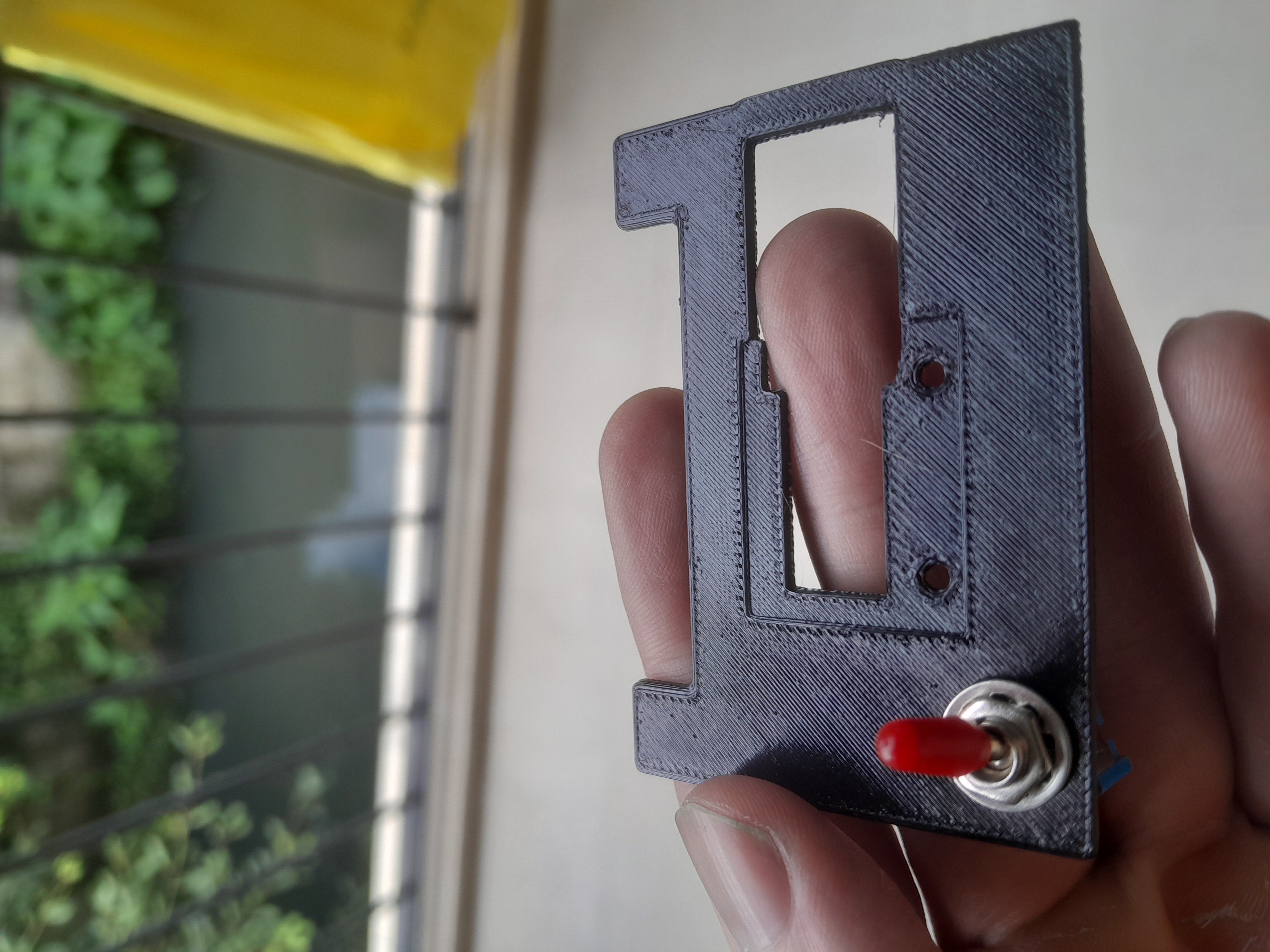

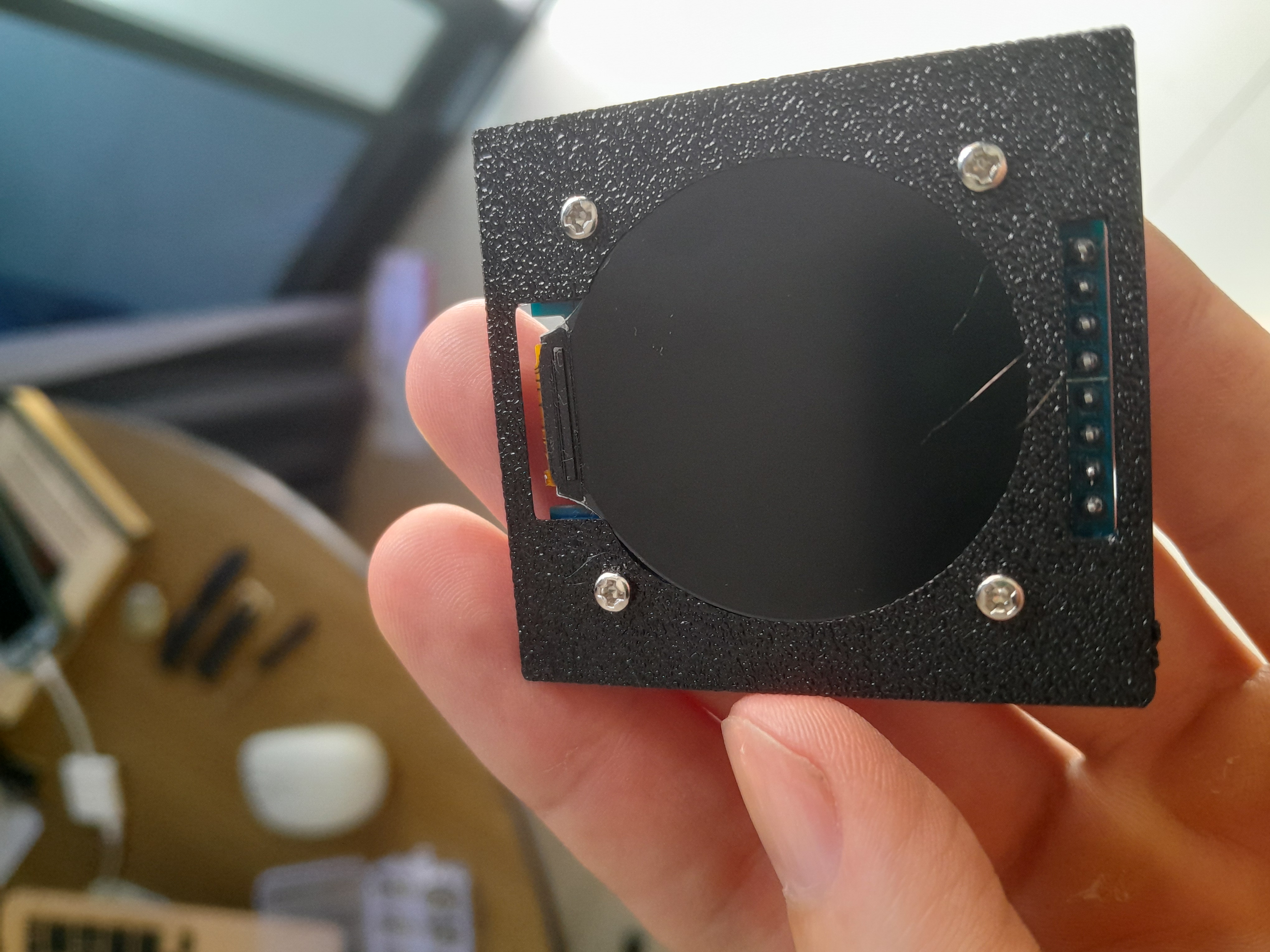

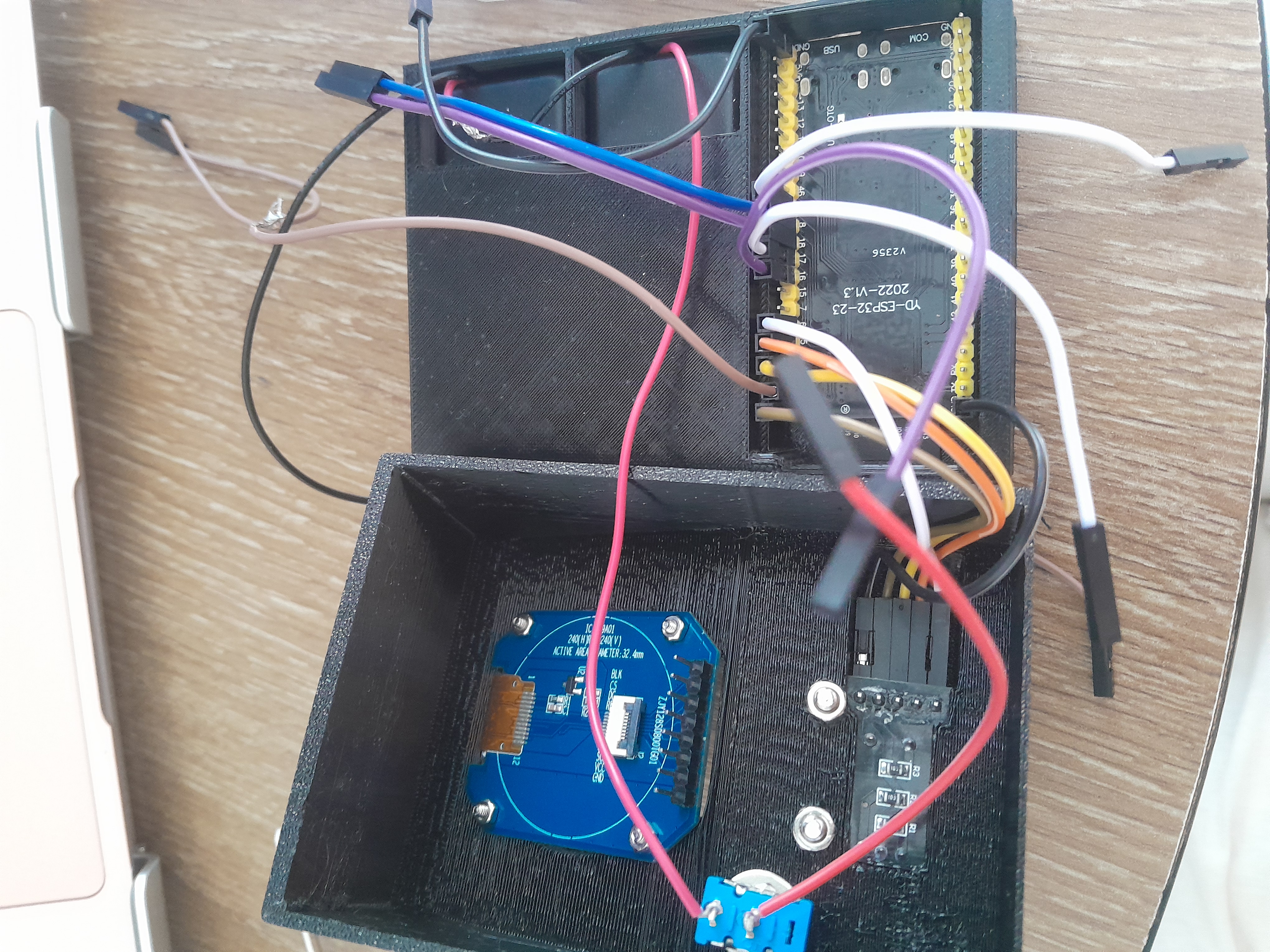

Gallery

Explore concept renders, manufacturing progress, and other random things

Comments & Lessons

I used a snap fit on the bottom which is working nicely, but glued the bottom and top sections, but would like to use either magnets, screws, or snap fit for a 3d version.

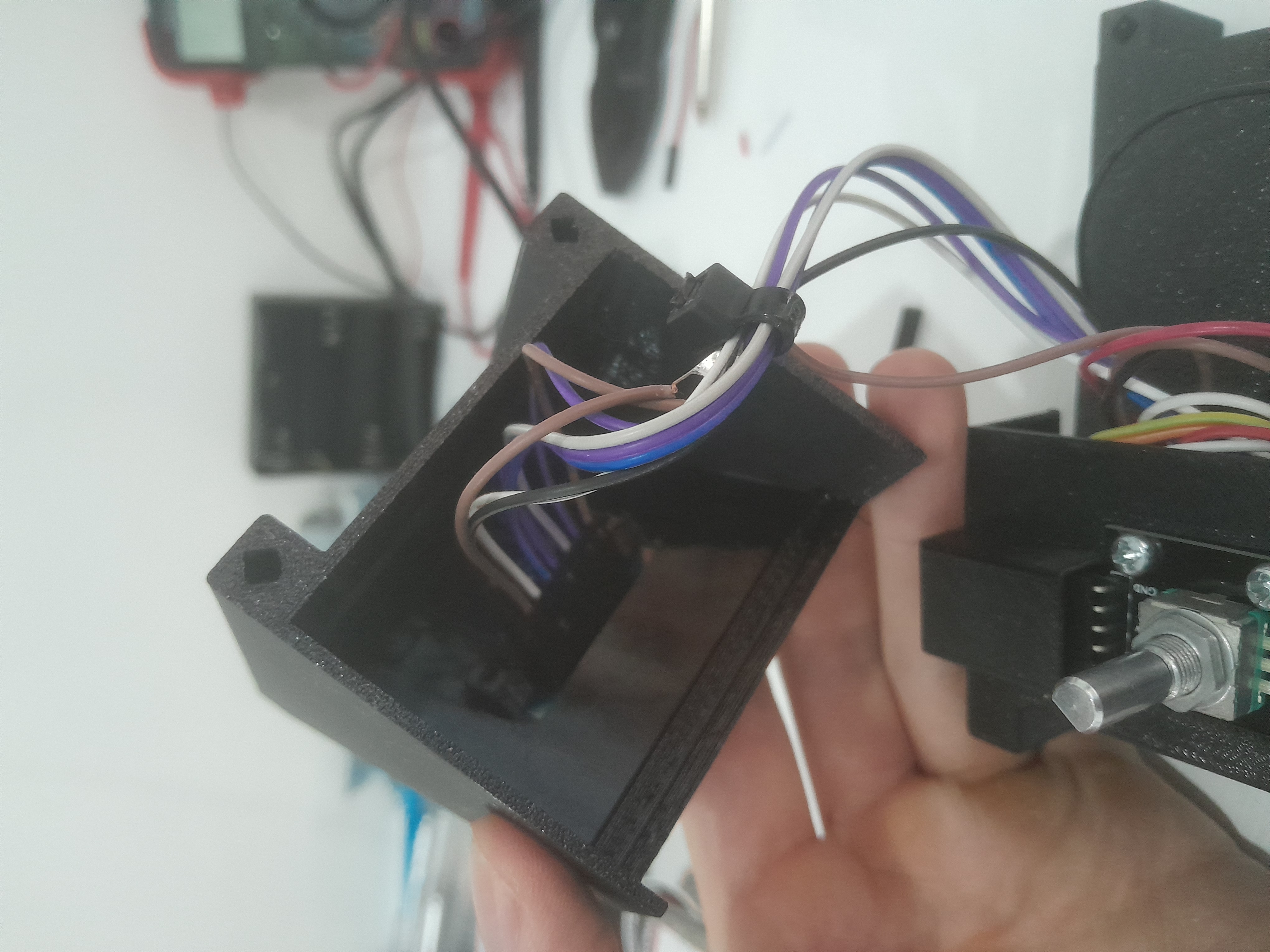

I would probably reduce small around the display if I do another version, but at the same time that space provides alot of relief for the wiring.
Originally had some very small M1.7 brass heat insets but had some issues inserting them into the PETG plastic so will switch to designed fit or magnets so switched to snap fit for bottom.
Version 3 tbd :-)
